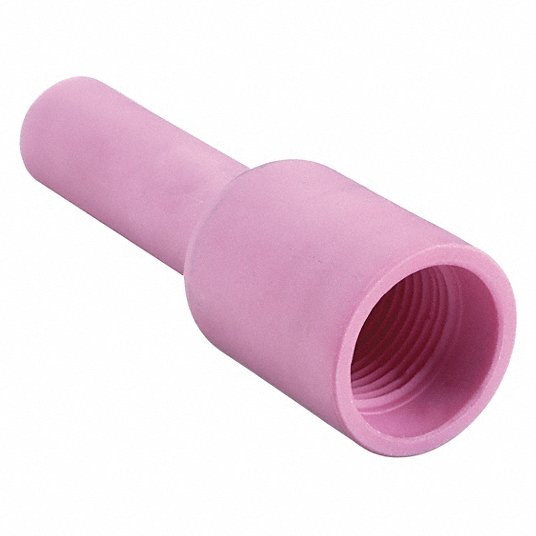

Miller Electric Nozzle, Alumina, No. 7, Long 54N15L
519
741
Nozzle
This alumina nozzle is designed for use in lower amperage applications.
| Compatible with Model | 17, 17F, 17FV, 17FVB, 17HP, 17HPV, 17V, 18, 18-90, 18HP, 18P, 18V, 26, 26F, 26FV, 26FVB, 26HP, 26HPV, 26V, 301525, 301526, CS410A, HW-17, HW-17F, HW-17R, HW-18, HW-18R, HW-26, HW-26F, HW-26R, PTA-17, PTA-17F, PTA-17FV, PTA-17V, PTA-26, PTA-26F, PTA-26FV, PTA-26V, PTW-18, WP-17, WP-17-PSH, WP-17F, WP-17FV, WP-17V, WP-17V-PSH, WP-18, WP-18SC, WP-18V, WP-26, WP-26F, WP-26FV, WP-26V, WP-R17F, WP-R17FV, WP-R26F, WP-R26FV |
|---|---|
| Compatible with Series | 17, 18, 26, A-150, A-200, A-250, HW-17, HW-18, HW-26, PTA-17, PTA-26, PTW-18, W-350, W-400, W-410 |
| For Maximum Electrode Diameter | 0.0625 in |
| Material | Alumina |
| Nozzle Nominal Size | No. 7 |
| Reference Number | 54N15L |
| TIG Torch Application | Gas Lens |
| Type | Gas Lens Nozzle |
| Welding Processes | TIG Welding (GTAW) |
| Compatible with Brand | Miller |
| Compatible with Grainger Part Number | 6XXN2, 6XXN3, 6XXN4, 6XXN5, 6XXN6, 6XXN9, 6XXP0, 6XXP1, 6XXP6, Not Found |
| Outside Diameter | GL, Long, #7 (7/16 in) |
| Nozzle Length | Long |
| Sub-Brand | Weldcraft |
| Weight | 0.37194543999999996 KG |
| ID | 1407496 |
