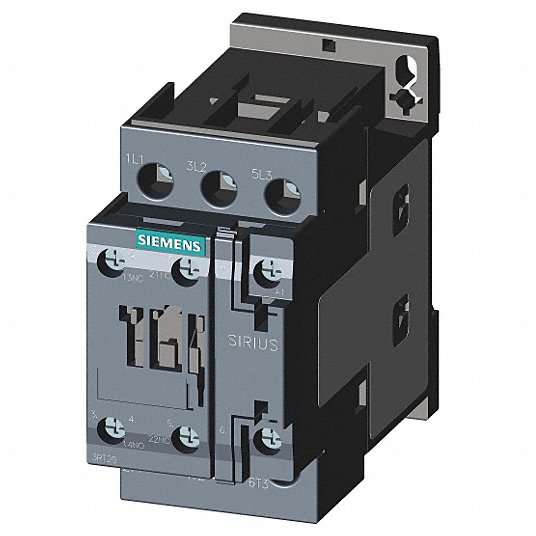

Siemens 208V AC IEC Magnetic Contactor; No. of Poles 3, 16 A Full Load Amps-Inductive 3RT2025-1AN20
115
164
Magnetic Contactor
Split in 4 payments of 28.60
monthly without fees , learn more
Split it into 4 payments of 28.60
interest-free , learn more
Featuring an energy-efficient design, this contactor allows easy assembly of components to form motor starters.
- The modular design includes screw terminals and plug-in accessories.
| Full Load Amps-Inductive | 16 A |
|---|---|
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 208V AC |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 5 hp |
| HP @ 3 Phase - 240V | 5 hp |
| HP @ 3 Phase - 480V | 10 hp |
| HP @ 3 Phase - 575V | 15 hp |
| Aux. Contact Configuration | 1NO/1NC |
| Enclosure NEMA Rating | No Enclosure |
| Hz | 50/60 |
| Height | 1.77 in |
| Width | 1.77 in |
| Depth | 3.82 in |
| Standards | CSA, IEC, UL |
| Frame | Series / Class / Code / S0 |
| Weight | 0.85 KG |
| ID | 997158 |
