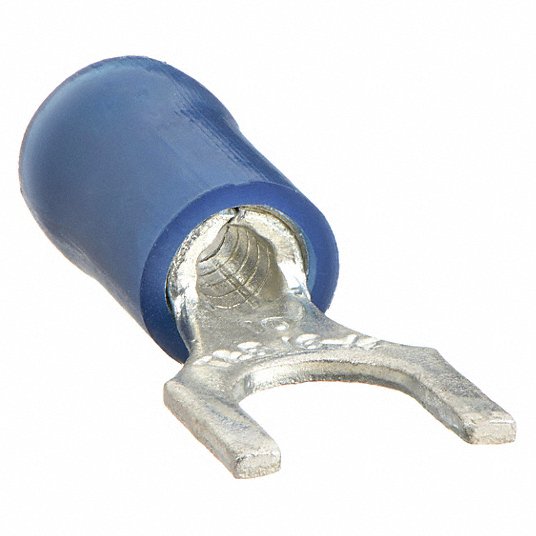

Sta-Kon Fork Terminal, Standard Terminal Type, Crimp Connection Type, Nylon Insulation Type 3KG43
199
283
Fork Terminal
These nylon fork terminals feature copper construction and overlapped seams.
| Terminal Type | Standard |
|---|---|
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Insulation Color | Blue |
| Wire Range | 18 to 14 AWG |
| Stud Size | #8 |
| Seam | Overlapped |
| Overall Length | 0.87 in |
| Max. Voltage | 600 V |
| Max. Temp. | 221 Degrees F |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.25 in |
| Standards | CSA Certified, UL Listed |
| Weight | 0.113398 KG |
| ID | 955802 |
