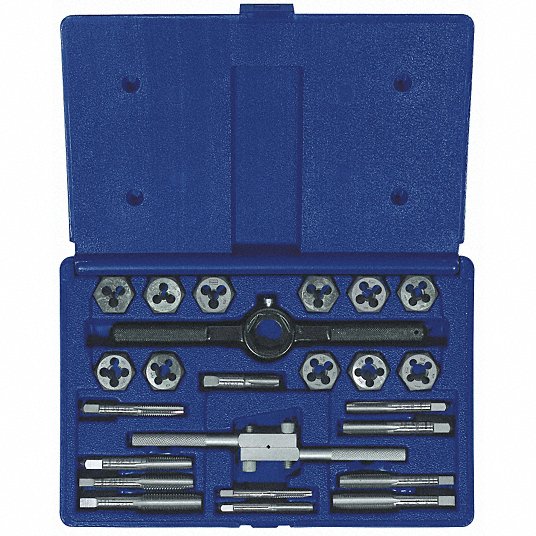

Irwin Tap and Die Set, Number of Pieces 24, Die Shape Hex, Tap Type Straight Flute 24614
378
Tap and Die Set
Split in 4 payments of 94.38
monthly without fees , learn more
Split it into 4 payments of 94.38
interest-free , learn more
Features
- The taps and dies in these sets are made from carbon steel.
- They are an economical choice for internal- and external-threading applications in maintenance operations.
| Number of Pieces | 24 |
|---|---|
| Number Of Taps | 11 |
| Number of Dies in Set | 11 |
| Tap Type | Straight Flute |
| Thread Standard | NC, NF, NPT |
| Thread Sizes Included | 1/2"-13, 1/2"-20, 1/4"-20, 1/4"-28, 1/8"-27, 3/8"-16, 3/8"-24, 5/16"-18, 5/16"-24, 7/16"-14, 7/16"-20 |
| Threads per Inch | 13, 14, 16, 18, 20, 24, 27, 28 |
| Tap Series | Hanson |
| Class of Fit | 2B |
| Drill Bit Size | #3, #7, 25/64 in, 27/64 in, 29/64 in, 5/16 in, F, I, Q, U |
| Helix Angle | 0 Degrees |
| Number of Flutes | 3, 4 |
| Die Material | High Speed Steel |
| Die Shape | Hex |
| Die Type | Solid |
| Die Thread Sizes Included | 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 7/16"-14 NC, 7/16"-20 NF |
| Die Hex Size | 1 in |
| 55% Thread Drill Size | # 3, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 5.70mm, 8.40mm, 9/32 in, I, W |
| 65% Thread Drill Size | # 5, 10mm, 11.60mm, 11mm, 17/64 in, 7/32 in, J, P, R, V |
| 75% Thread Drill Size | # 7, 11.40mm, 27/64 in, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, I, U |
| Die Material Grade | Carbon Steel |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | 1/2"-20 |
| Max. Tap Thread Size | 1/2"-20 |
| Measurement System | Fractional Inch |
| Min. Bore Dia. | 1/8 in -27 NPT |
| Min. Tap Thread Size | 1/8"-27 |
| Spiral Direction | Neutral |
| Tap Sizes Included | 1/2 in -13 NC, 1/2 in -20 NF, 1/4 in -20 NC, 1/4 in -28 NF, 1/8 in -27 NPT, 3/8 in -16 NC, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 7/16 in -14 NC, 7/16 in -20 NF |
| Tap Chamfer | Plug |
| Tap Material | High Speed Steel |
| Tap Wrench Number | 12421 |
| Thread Direction | Right Hand |
| Thread Type | NC, NF, NPT |
| Weight | 1.35 KG |
| ID | 1004425 |
