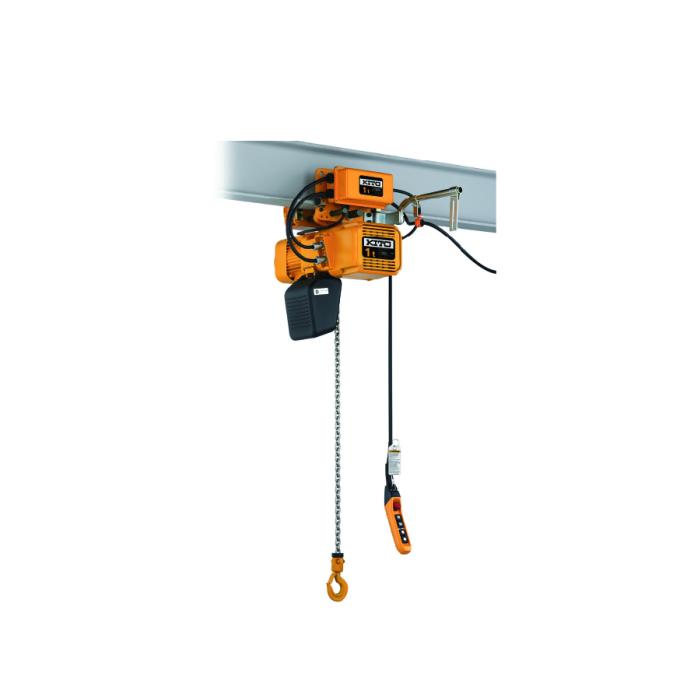

Out of Stock Kito CHAIN HOIST 1 TON 4 WAYS 380 V, ER2M010S-S, Made In Japan ER2M010S-S/380V

Kito CHAIN HOIST 1 TON 4 WAYS 380 V, ER2M010S-S, Made In Japan ER2M010S-S/380V

Weight: 84 KG

9,830

(vat inclusive)

Chain hoist

Quantity

Out of Stock

SKU ER2M010S-S/380V

24 Months Warranty

Lifting & Pulling Electric Chain Hoist Speed Control With Trolley

Features

CHAIN HOIST,Single Lifting - Single Traversing Speed from KITO With Motorized Trolley, 380V
Ten meters of power supply cable as standard accompanies
Optional length of lift, push button cord and power supply cable besides standard is available on your request
Extending the load chain is prohibited with additional links
Steel chain containers are available as option as shown in Section of "Chain Containers" if your lift is more than capacity of the standard container volume
Single Lifting - Dual Traversing is also available

Capacity(t)	1
Hoist Body	D
Standard Lift (m)	3
Push Button Cord L (m)	2.5
Lifting Motor	Output (kW) / 1.8
Lifting Motor	Rating (%ED) / 60
Lifting Speed (m	min) / 50Hz:7.1 / 60Hz: 8.5
Load Chain: Diameter (mm) x Chain Falls	7.7. x 1
Classification ISO	FEM/ASME: M5/2m/H4
Traversing Motor	Output (kW) / 0.4
Traversing Motor	Rating (%ED) / 40
Traversing Speed (m	min) / 50Hz: 20 (10) / 60Hz :24 (12)
Flange Width B (mm)	Standard / 58 to 153
Flange Width B (mm)	Option W30 (305mm) / 154 to 305
Min.Radius Curve (mm)	800
Test Load (t)	1.25
Net Weight (kg)	84
Additional Weight per 1m Lift (kg)	1.33
Weight	84 KG
ID	2199172
