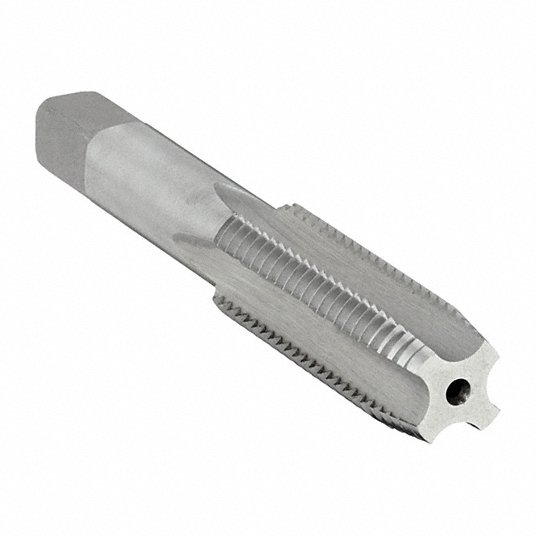

Widia Gtd Straight Flute Tap, Thread Size M22x2.5, Metric Coarse, Plug, Overall Length 119.06 mm 11910
120
172
Straight Flute Tap
Split in 4 payments of 29.94
monthly without fees , learn more
Split it into 4 payments of 29.94
interest-free , learn more
Features
- The bright finish on these taps provides a smooth, polished surface.
| Thread Size | M22x2.5 |
|---|---|
| Thread Standard | Metric Coarse |
| Tap Chamfer | Plug |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 56.36 mm |
| Overall Length | 119.06 mm |
| 75% Thread Drill Size | 19.50 mm |
| Thread Limit | H6 |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Tap Length Standard | ANSI |
| Tap Shank Standard | ANSI |
| 55% Thread Drill Size | 51/64 in |
| 65% Thread Drill Size | 25/32 in |
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Measurement System | Metric |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application ISO Code | N |
| Series | 7353 |
| Shank Dia. | 17.70 mm |
| Shank Length | 2 15/32 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 13.28 mm |
| Standards | ANSI |
| Tap Grouping | Individual |
| Tap Style | Straight Flute (Hand) |
| Thread Limit | Class of Fit / H6 |
| Thread Pitch | 2.50mm |
| Weight | 0.19 KG |
| ID | 1134185 |
