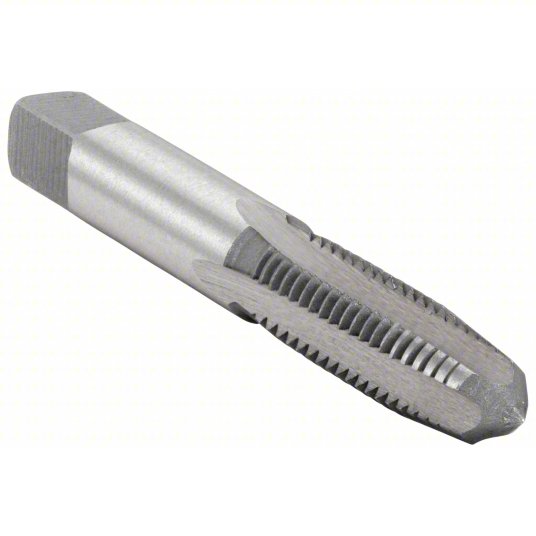

Westward Straight Flute Tap, 1/2 inch-13 Thread Size, 1 21/32 inch Thread Lg, 3 3/8 inch Overall Length 2LXE8
28
40
Straight Flute Tap
Split in 4 payments of 6.89
monthly without fees , learn more
Split it into 4 payments of 6.89
interest-free , learn more
Westward 2LXE8 Straight Flute Tap
The highly polished finish of these taps adds a smooth, polished surface.
| Thread Size | 1/2 inch-13 |
|---|---|
| Thread Standard | UNC |
| Tap Chamfer | Taper |
| Tap Material | Carbon Steel |
| Tap Finish | Bright (Uncoated) |
| Thread Length | 1-21/32 inch |
| Overall Length | 3-3/8 inch |
| Thread Direction | Right Hand |
| Number of Flutes | 4 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 27/64 inch |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Shank Dia. | 23/64 inch |
| Shank Type - Machining | Straight |
| Square Size | 0.2750 inch |
| Standards | ASME |
| Tap Style | Straight Flute |
| Threads per Inch | 13 |
| Weight | 0.1360 KG |
| Code | BD-2LXE8 |
| ID | 1285082 |
